Application
TO CONTROL THE FEED RATE OF PALM NUTS TO THE RIPPLE MILL FOR CRACKING.

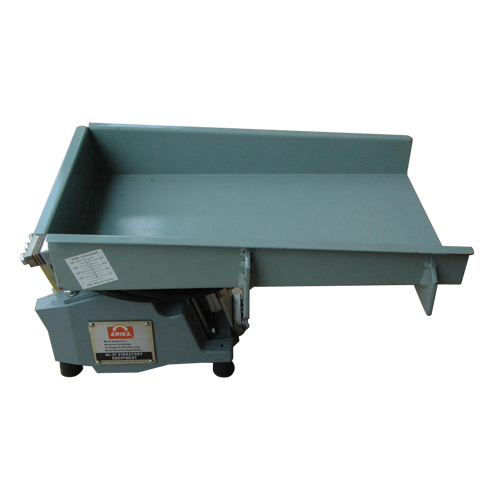

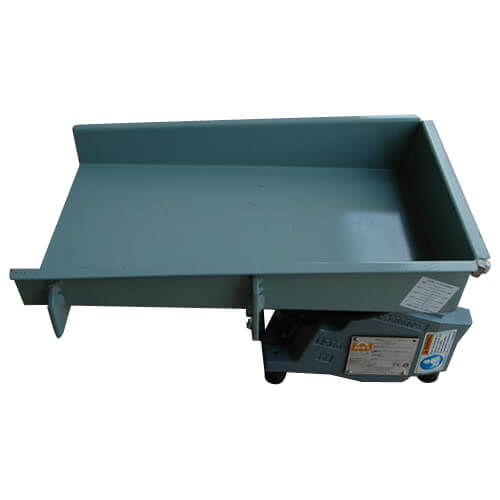

ERIEZ VIBRATORY FEEDERS
BRAND: ERIEZ
MODEL: 26C/36C/46C
CAPACITY: 4/7/11 TONNE/HOUR
MAX. OPERATING TEMPERATURE: 54 DEGREES C
CAPACITY: 4/7/15 TONS/HOUR
POWER SUPPLY: 115V, 60 CYCLE, SINGLE PHASE
Mild Steel Tray Size
26C: 9″ Width x 16″ Long
36C: 12″ Width x 20″ Long
46C: 14″ Width x 24″ Long
FEATURES
Patented ERIEZ HI-VI Magnetic Drive Circuit
Powered by opposing and attracting magnetic forces, this feeder feeds bulk materials from micron size to bulky chunks with no sliding or rotating parts, ensuring low power consumption, low maintenance and unparalleled accuracy.
Simple Controls
Excellent linearity is achieved by varying the voltage to the feeder with Eriez AC circuit.
Encapsulation
Coil and magnet in ERIEZ drive unit are encapsulated in epoxy, eliminating coil movement.
