Features
1. Unique new OKM soft-touch seat for lower torque and longer service life.
2. Lower torque results in lighter and smaller actuator.
3. FCD450 as body material.

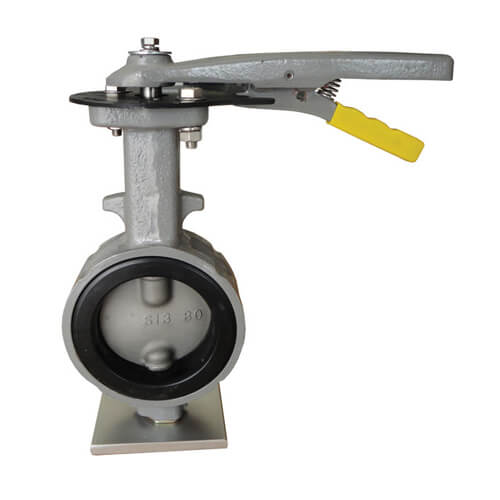

OKM 612X/615X BUTTERFLY VALVE
BRAND: OKM
MODEL: 612XC/615XC
NOMINAL SIZE: 40-300MM/ 350-1200MM
BODY: DUCTILE IRON/ CAST IRON
DISC: SS304/ SS316
STEM: SUS 420 J2
SEAT RING: EPDM, NBR
FLANGE: JIS 5K, 10K ASME/ANSI 125LB, 150LB
MAX. SERVICE PRESSURE: 10 BAR
MAX. SERVICE TEMPERATURE: 0-120 DEGREES C
APPLICATION: GENERAL INDUSTRY, AIR CONDITIONING SYSTEMS, PALM OIL MILL, MARINE
