Application
1. Regulate flow of water cooling, gases, liquid, air and fire applications.
2. Waste water and similar services
3. Vacuum applications
4. Paper and pulp
5. Heavy pressure and higher temperature application area.

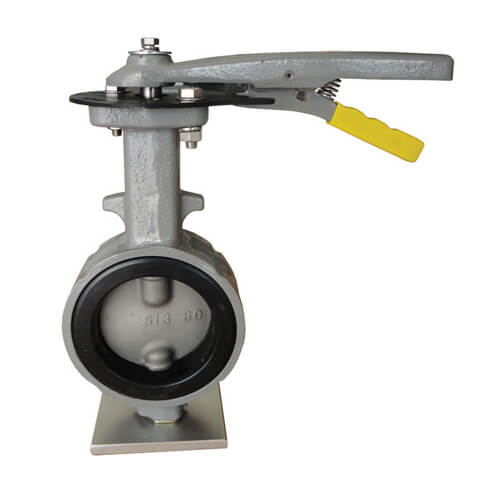

OKM 616 BUTTERFLY VALVE
BRAND: OKM
MODEL: 616
NOMINAL SIZE: 50-300MM
BODY: DUCTILE IRON
DISC: SS304/SS316
STEM: SUS403
SEAT RING: EPDM, NBR
FLANGE: JIS 5K, 10K ASME/ANSI 125LB, 150LB
MAX. SERVICE PRESSURE: 10 BAR
MAX. SERVICE TEMPERATURE: 0-120 DEGREES C
APPLICATION: CONSTRUCTION EQUIPMENT, HIGH RISE BUILDINGS, GENERAL INDUSTRIES, PALM OIL MILL
